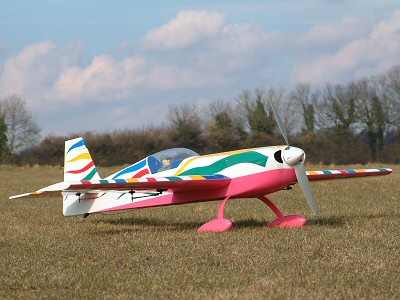

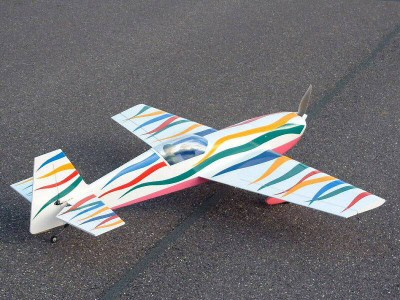

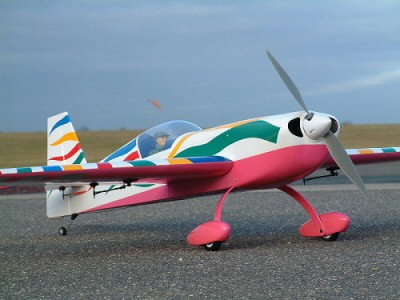

| This is a Glen's Models Extra 330S.
The basic airframe was built by my good friend 'Christophe'
and it fly's beautifully. Originally I was going to power
it with a YS63 4 stroke engine. then I was persuaded to electrify

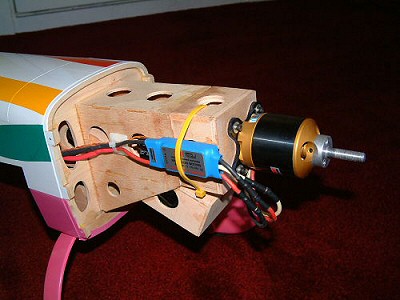

it. It now has a Model Motors Axi 4130/16 in it
Manufacturer |
Glens Models |
Model |
Extra 330S |
Wingspan |
58" |
Weight |
6.85lbs |
Motor |
Model Motors Axi 4130/16 |
Prop |
APC 17" x 10" Electric Prop |
Battery |
2 pack of 3S4PV 5,300mAh Thunder Power Lithium Polymer
cells wired in series 6S (22.2V) |
ESC |
Jeti 77OPTO Advance Plus (no BEC) |
BEC |
Ashtec Electronics 5V |
Volts under Load |
20.54V |
Amps |
57.4A |
Watts |
1,180W |
RPM |
5,955 |
These batteries could easily give me 15 minutes of full
on aerobatic flying.
I estimate it to have nearly a 2:1 power to weight ratio
with this Extra.

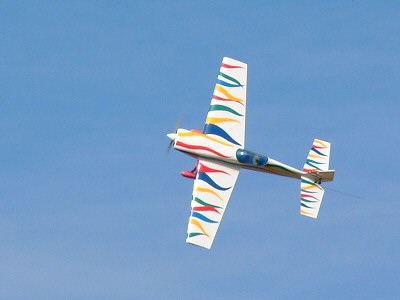

It is fantastic to fly, with no vices and will knife edge
all day long.
It is also very easy and predicable to land.
I love this plane!
|
