Manufacturer |
Hangar
9 |
Model |
Republic
P-47 Thunderbolt
- ARTF |
Wingspan |
65" |
Weight |
9.24lbs |
Motor |
|
Prop |
APC
16"
x 10"
pattern
prop |
Battery |
2
pack of
3S4PV
5,300mAh
Thunder
Power
Lithium
Polymer
cells
wired
in series
6S (22.2V) |
ESC |
|
BEC |
1
Ashtec
Electronics
5V. which
is used
to power
the retracts
and a
4 cell
Ni-Cd
to power
the receiver
and the
servos. |
Volts
under
Load |
21.26V |
Amps |
46.0A |
Watts |
980W |
RPM |
6,900 |

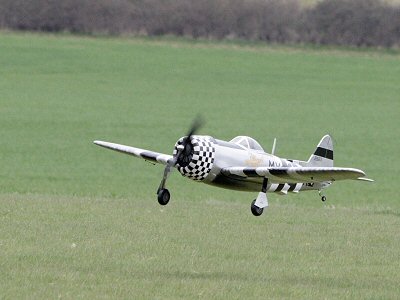

It is very easy to fly and with that thick wing it it can
fly really slowly and can land at a fast walking pace.
I added some additional scale detail which also helps in
the cooling of the motor, ESC and batteries in the form exhaust
outlets, and supercharger cooler outlets. I also added the
gun barrels and since these photos were taken I have added
some weathering.

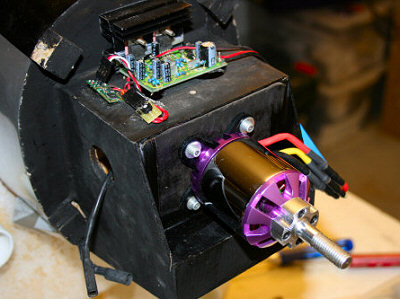

I originally
had a Schulze
Future 32.8F
ESC but this
gave me starting
problems so
I replaced it
with the Purple
Power PP-ESC70A
and everything
is now perfect.
The Schulze
has now been
transplanted
into my recently
converted ZN
Line Majestic
which is now
powered by a
Hacker C50 14XL
Acro 6.7:1.
With gentle flying and a few large loops and barrel rolls
thrown in to spice things up I can easily get 15 minutes of
flying out of the LiPo's.
All in all a great plane to fly, looks good with no vices
and the slow speed handling is superb!
I am now on my second plane as the 1st one cart wheeled after
I lost all control :o( Never really found out the reason why
all control was lost.
I have fitted a sound system from Benedini
on this second one which reproduces the start up, running,
throttling and shutdown sounds of the real Pratt and Whitney
R2800 radial engine. It's not very loud but it does add a
certain effect.

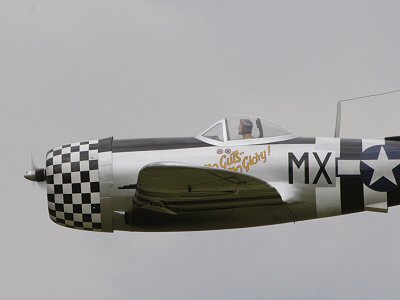

I have also removed the strake on the fin to replicate the
full size "No Guts, No Glory"
|
